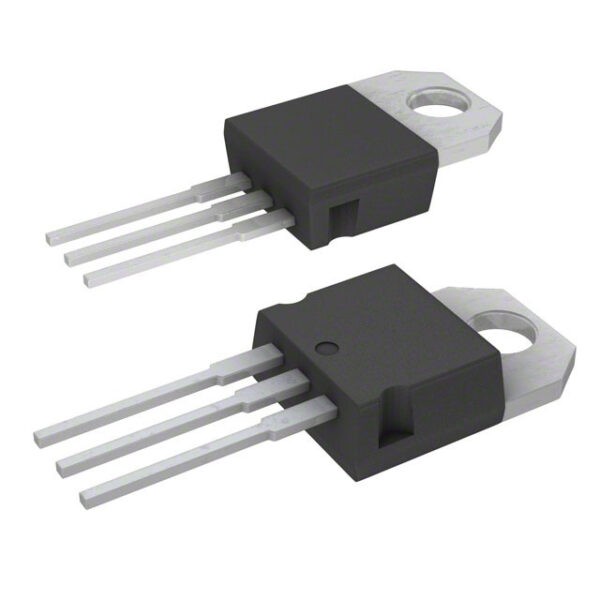

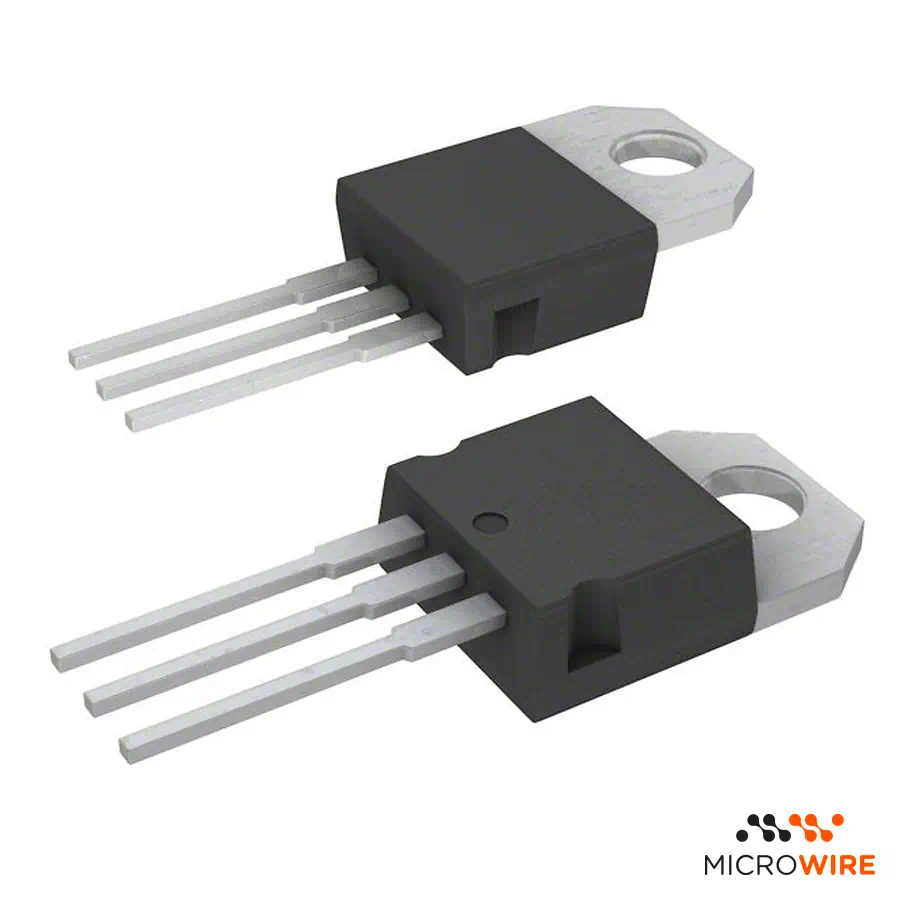

Triac BTA206X-800CT 800V 6A TO220F
Tipo Triac: Standard
Voltage – Off State: 800 V
Current – On State (It (RMS)) (Max): 6 A
Voltage – Gate Trigger (Vgt) (Max): 1.5 V
Current – Non Rep. Surge 50, 60Hz (Itsm): 60A, 66A
Current – Gate Trigger (Igt) (Max): 35 mA
Current – Hold (Ih) (Max): 35 mA
Configuration: Single
Operating Temperature: 150°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-220-3 Full Pack, Isolated Tab
Supplier Device Package: TO-220F
